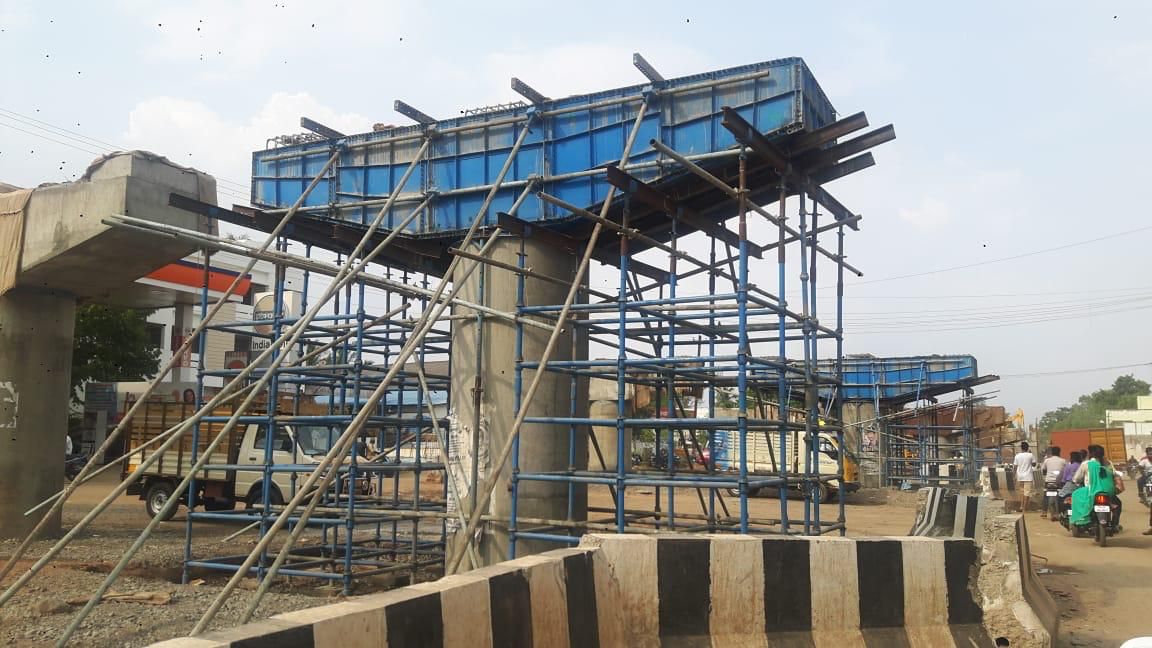

Manufacturers of steel Centering and scaffolding

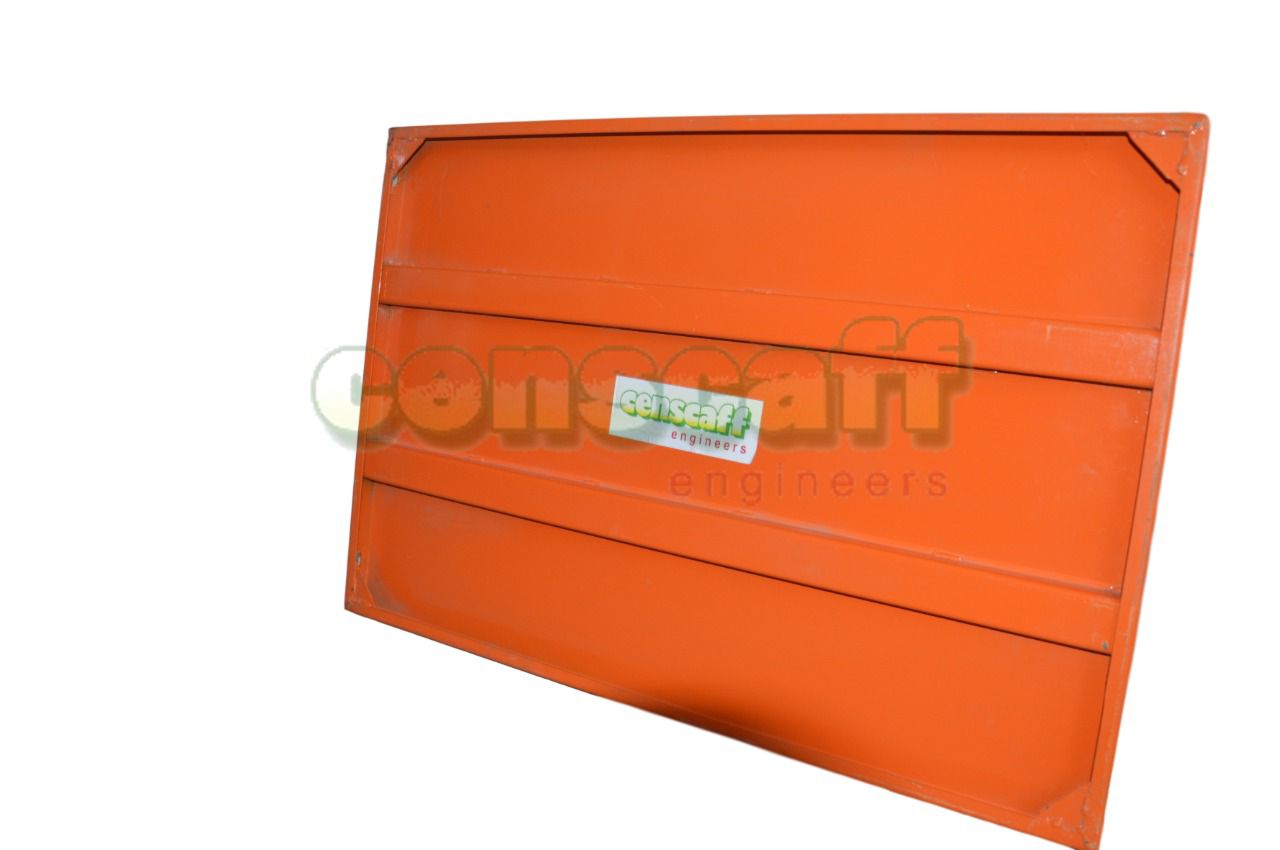

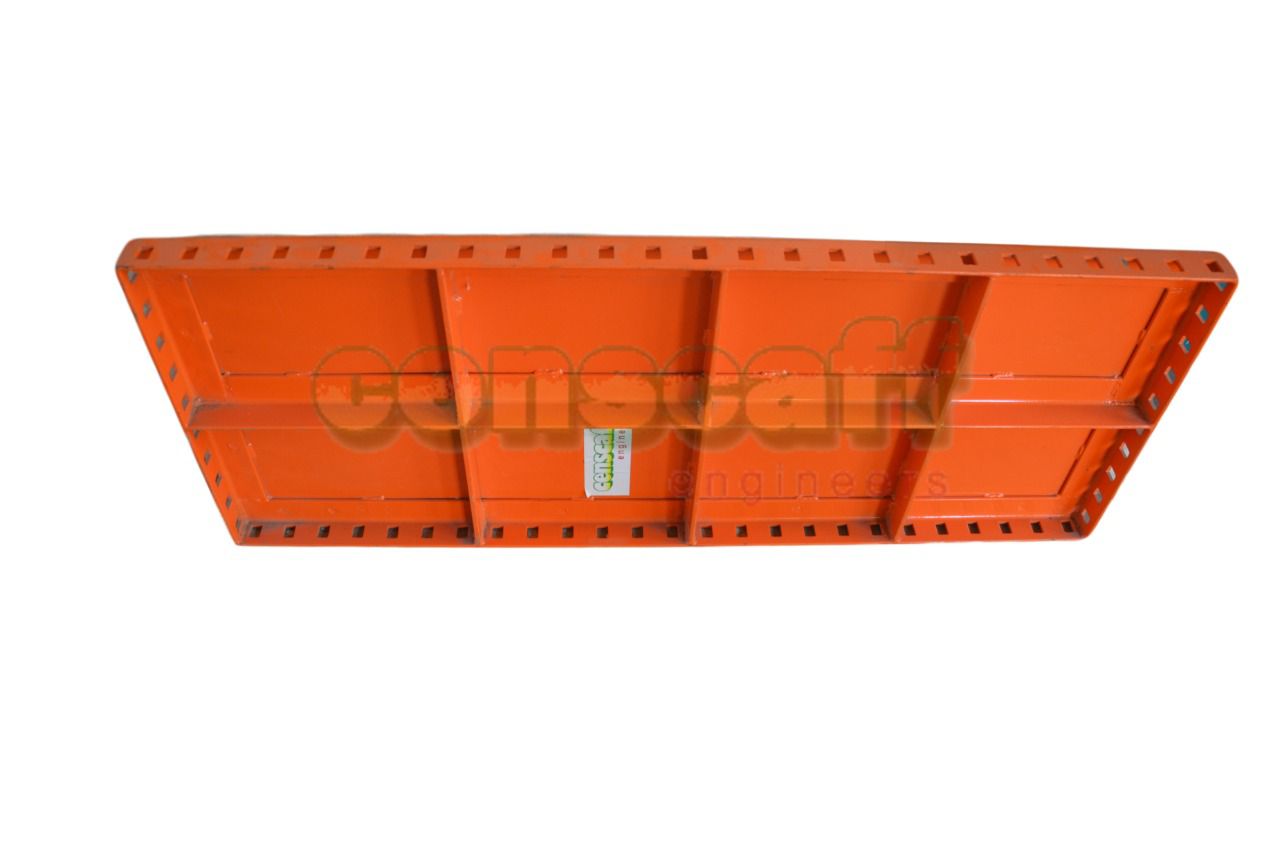

Floor form : 2 mm JSW tested quality HR sheet with 2 nos of vertical stiffeners and one coat of blue primer
1150 mm * 600 mm
1150 mm * 450 mm
900 mm * 600 mm
900 mm * 450 mm

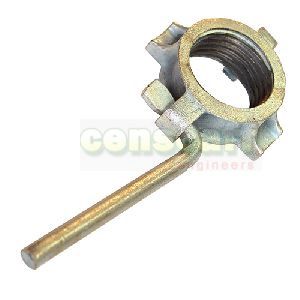

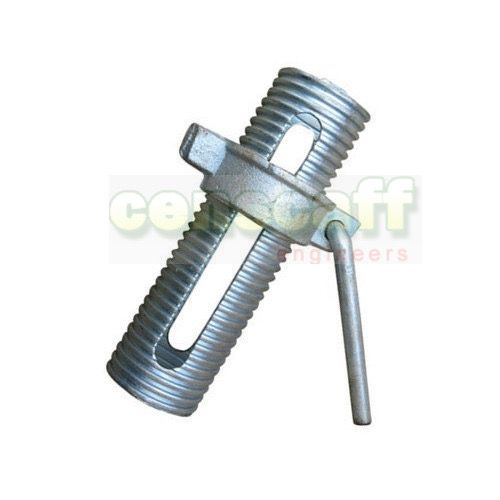

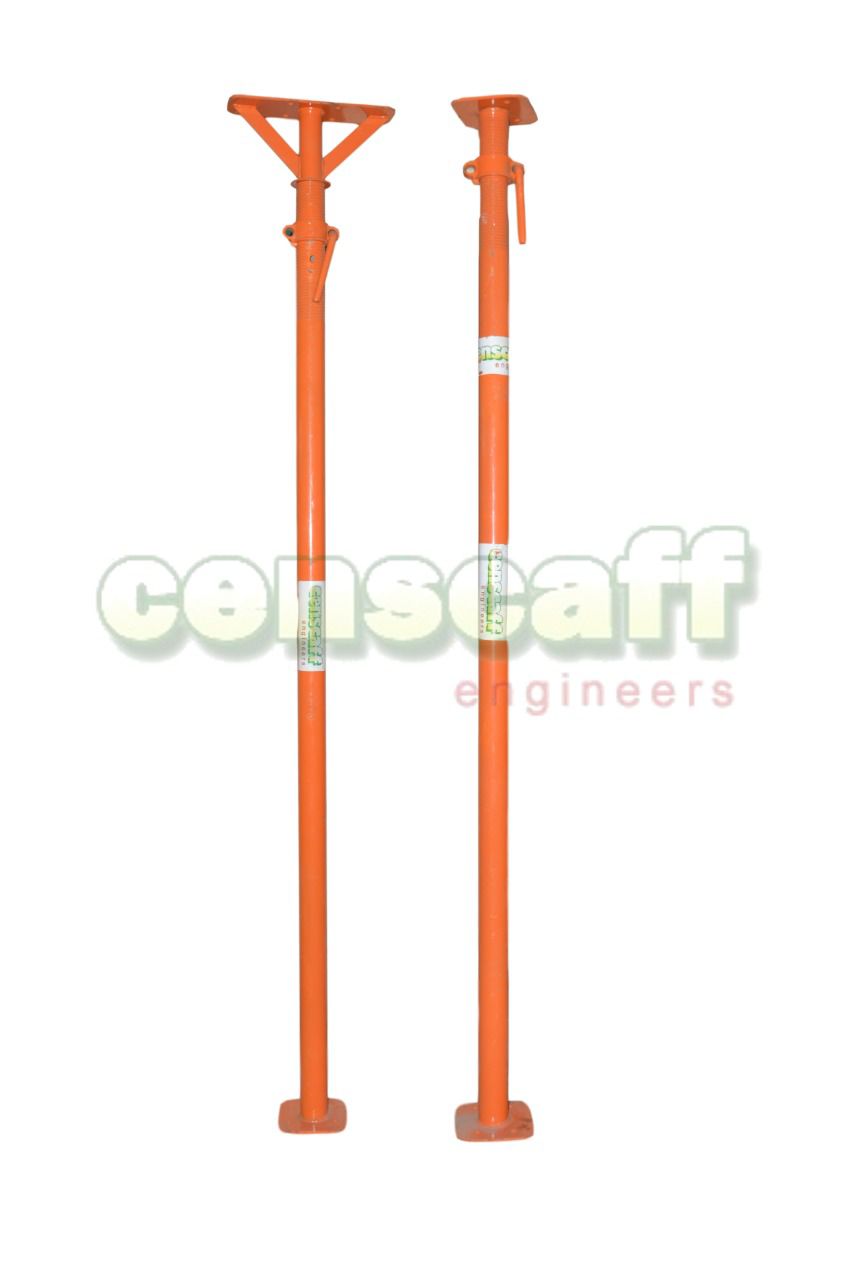

Adjustable props :Outer and inner are medium duty nezone pipes are made out of 50 mm and 40 mm ( wall thickness of 2.9mm ) tubes conforming to ISI 1161 grade YST 22 and fabricated with top and bottom plates are 150*150*6 mm thickness, malleable cast iron nut, pin and hook assembly with one coat of blue primer
Size | 0 | 1 | 2 | 3 | 4 |
Minimum | 1.00 Mtr | 1.50 Mtr | 2.00 Mtr | 3.00 Mtr | 3.00 Mtr |
Maximum | 1.75 Mtr | 3.25 Mtr | 3.75 Mtr | 4.65 Mtr | 5.65 Mtr |
Closed (Kg) | 3500 | 3100 | 3000 | 2400 | 2400 |
Extended | 3000 | 2200 | 2200 | 1200 | 1000 |

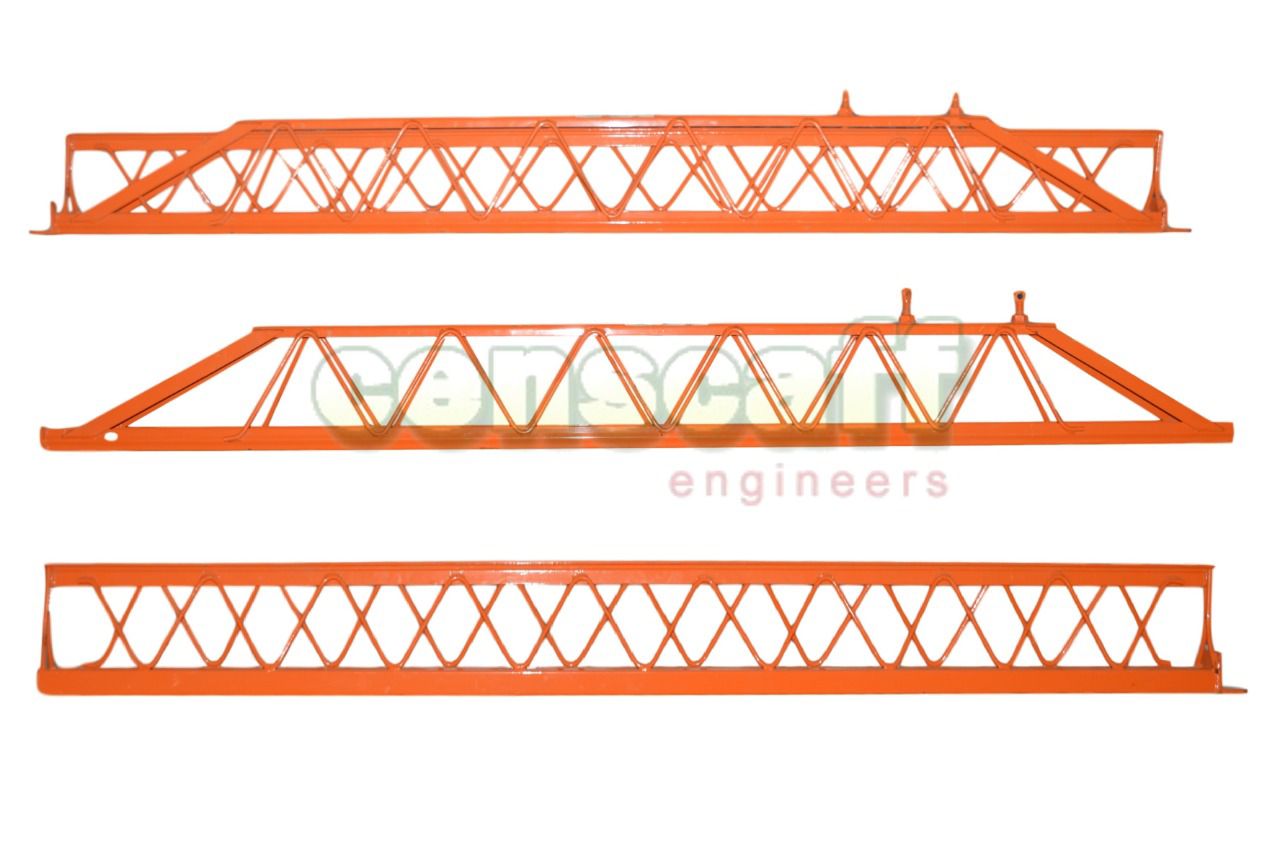

Adjustable Span: Outer and Inner channels are pressed out of 2 mm (14swg) tested quality HR Sheet fabricated with 10 mm M.S round rod, 40x40x6 mm T.angle, 4mm plate, 32x6mm flat 75x75x8mm angle bolt nut and one coat of Blue Primer.
Size | ESO / ESI | SO / ESI | SO / SI | SO / L1 | LO / S1 | LO / L1 |
Closed (kg) | 1.83 Mtr | 2.39 Mtr | 2.50 Mtr | 3.20 Mtr | 3.05 Mtr | 3.20 Mtr |
Extended | 2.70 Mtr | 3.45 Mtr | 4.15 Mtr | 4.85 Mtr | 4.85 Mtr | 5.50 Mtr |

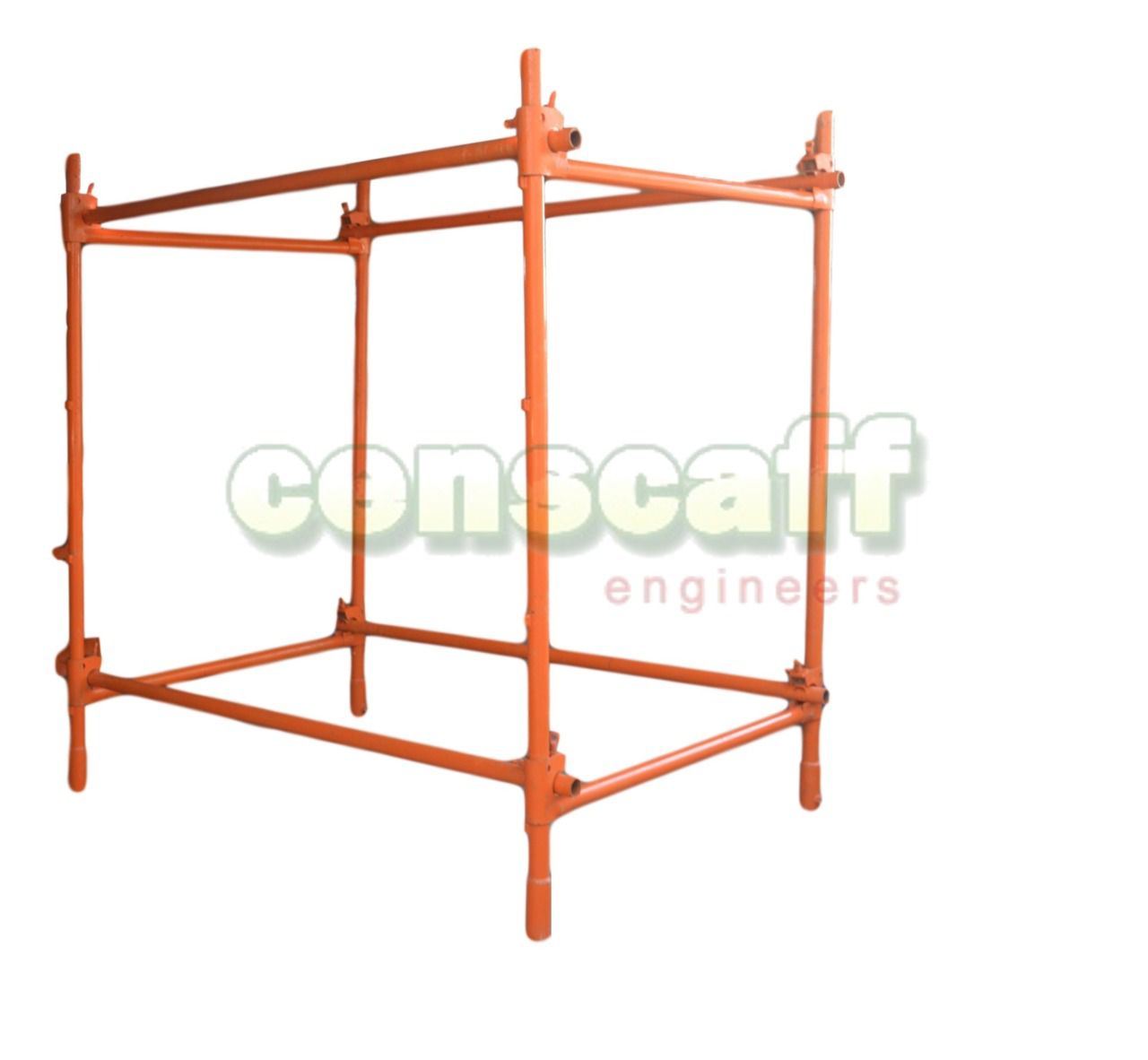

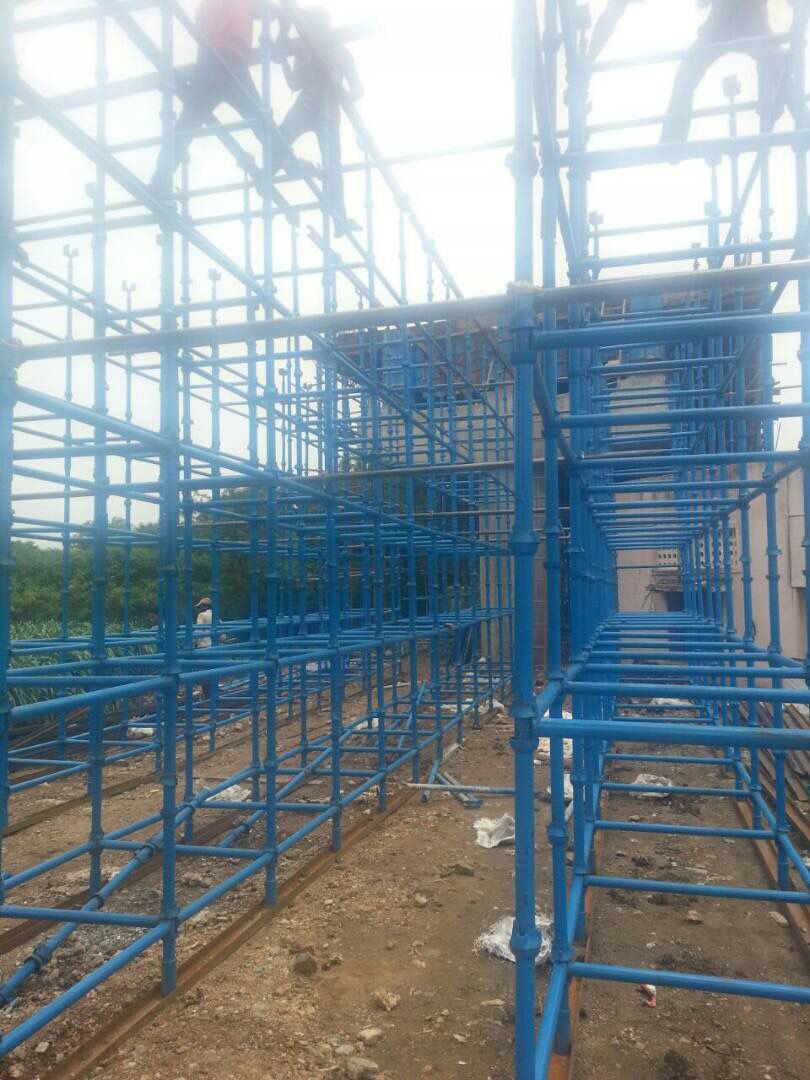

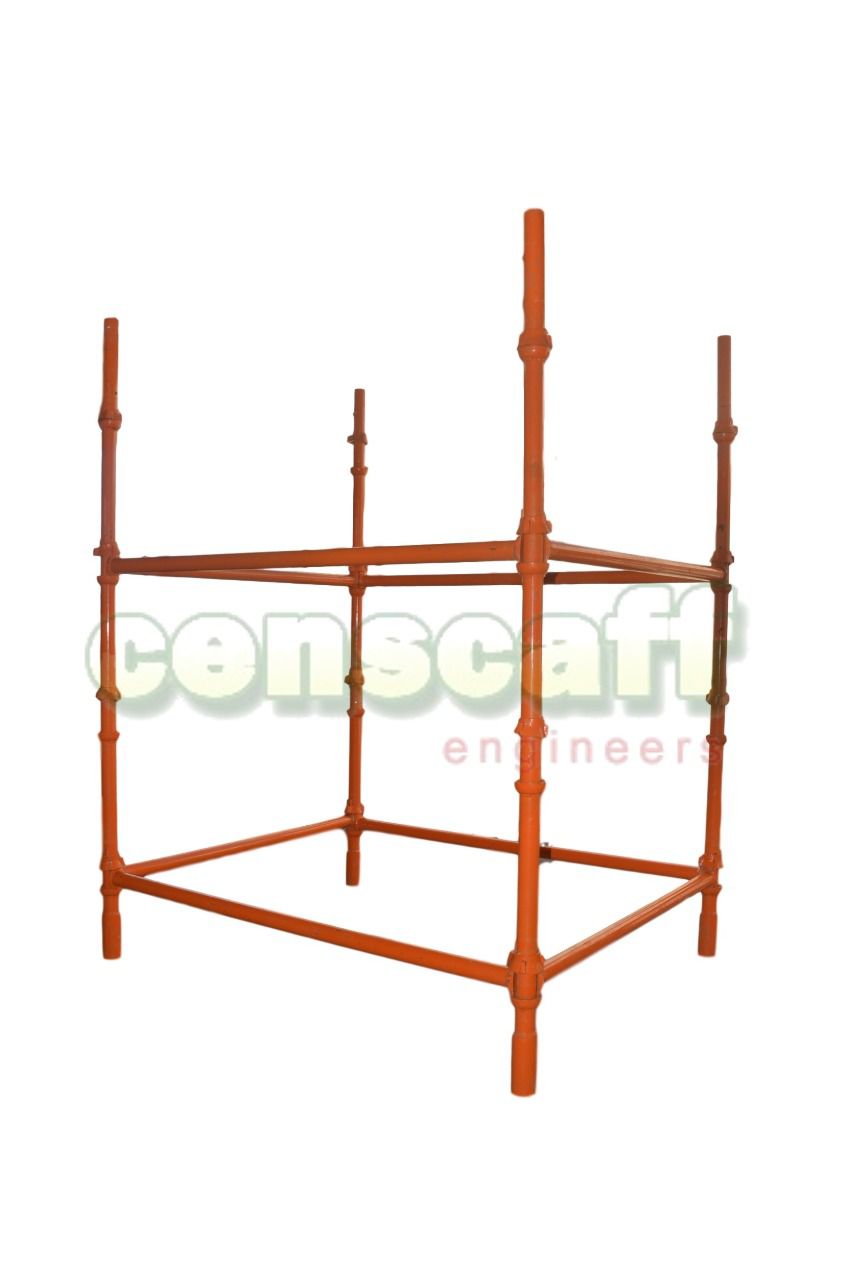

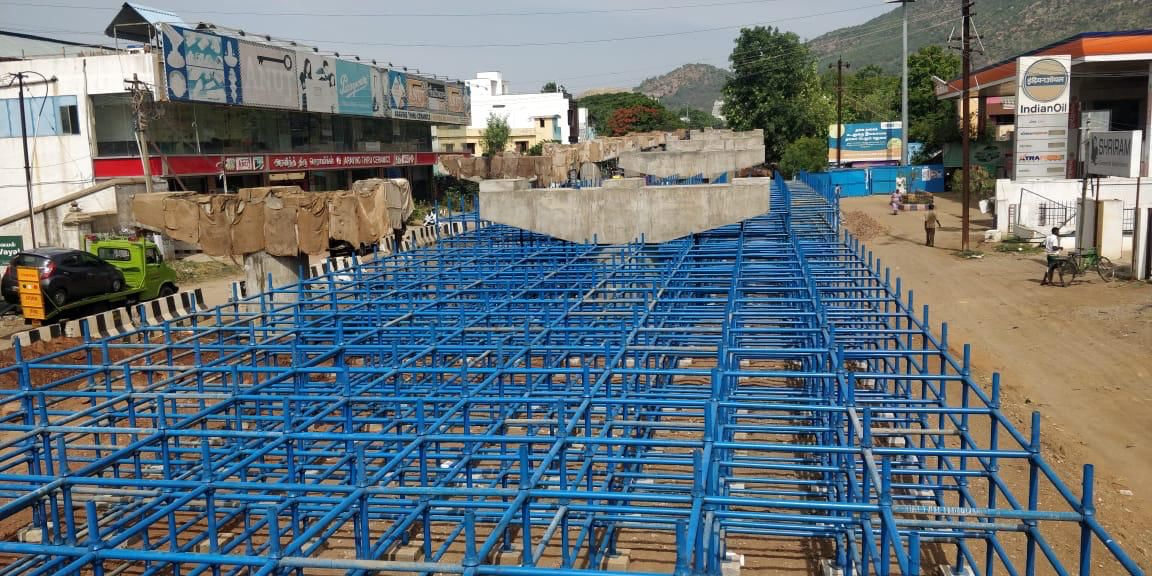

Cup lock System: Make out of 40mm medium duty pipes wall thickness of 3mm ERW tubes conforming IS 1239 grade YST 22 fabricated with 50mm medium duty Socket pipe, steel forging Top, Bottom Cups & Ledger Blades.
Ledger | 0.60 Mtr | 0.915 Mtr | 1.00 Mtr | 1.20 Mtr | 1.25 Mtr | 1.50 Mtr | 2.00 Mtr | 2.50 Mtr |
Vertical / Standard | 0.5 Mtr | 1 Mtr | 1.5 Mtr | 2 Mtr | 2.5 Mtr | 3 Mtr |
GPS: Made out of medium Duty ERW Tubes Conforming IS 1161 grade YST 22 with make of wall thickness of 3mm, two verticals of 40mm ID tube with sockets of 50mm ID tube at the bottom & one Horizontal cross bar of 40mm ID Tube with lugs welded on verticals provided positive support to horizontal ‘C’clamp to fix ledger tube for connecting the units and one coat of Blue Primer.
2 mtr * 1.22 mtr

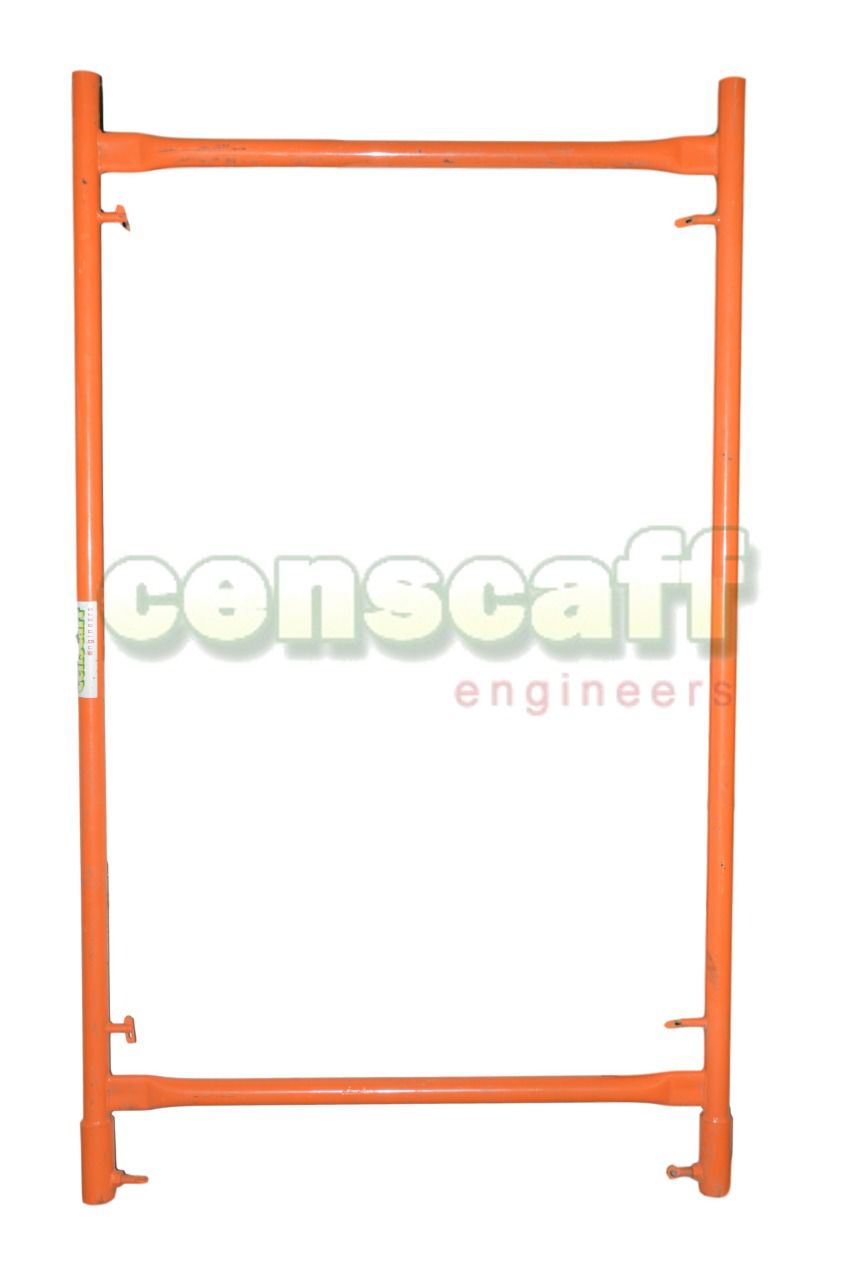

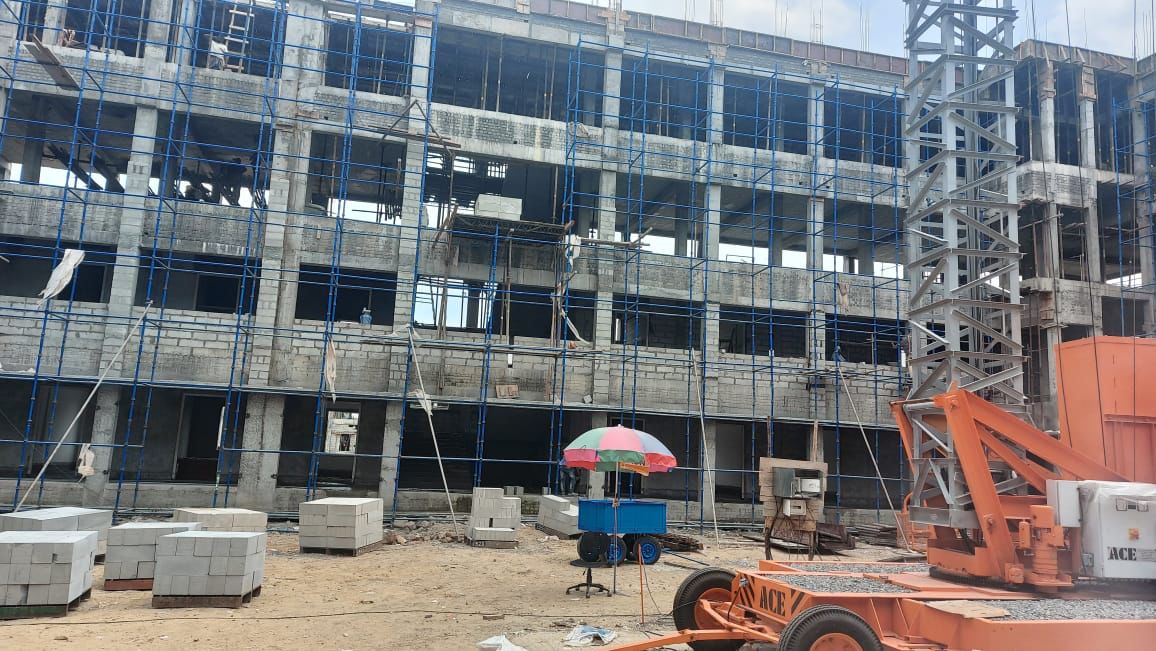

H” Frame Scaffolding: Made out of 40mm “A” class Medium duty pipe, Spigot Socket Welded Frames made out of 48.3mm Medium ERW tubes conforming IS 1239 grade YST 22 with two Verticals and two Horizontals. The Frames are inter connected by Scissors Cross Braces secured by self-locking Pins with one coat of Blue Primer.
2 mtr * 1.22 mtr

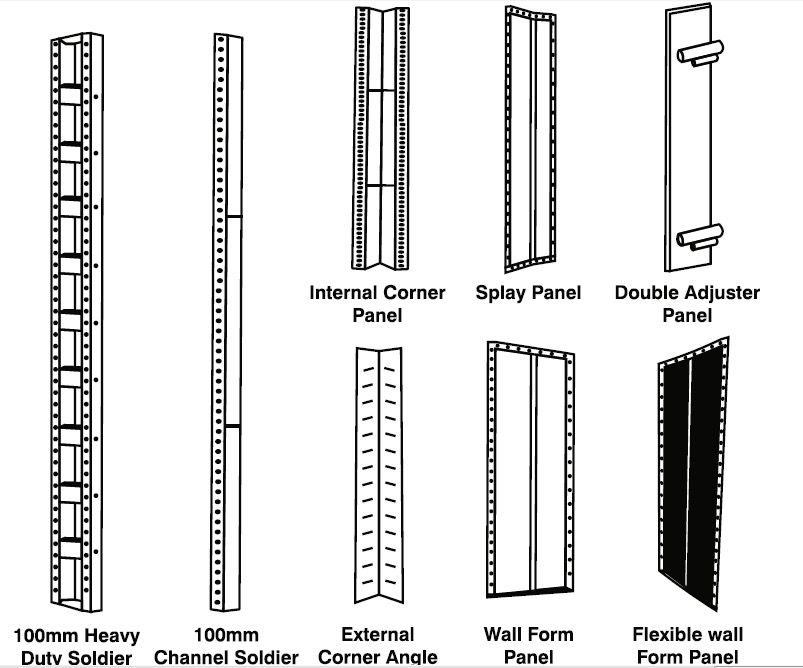

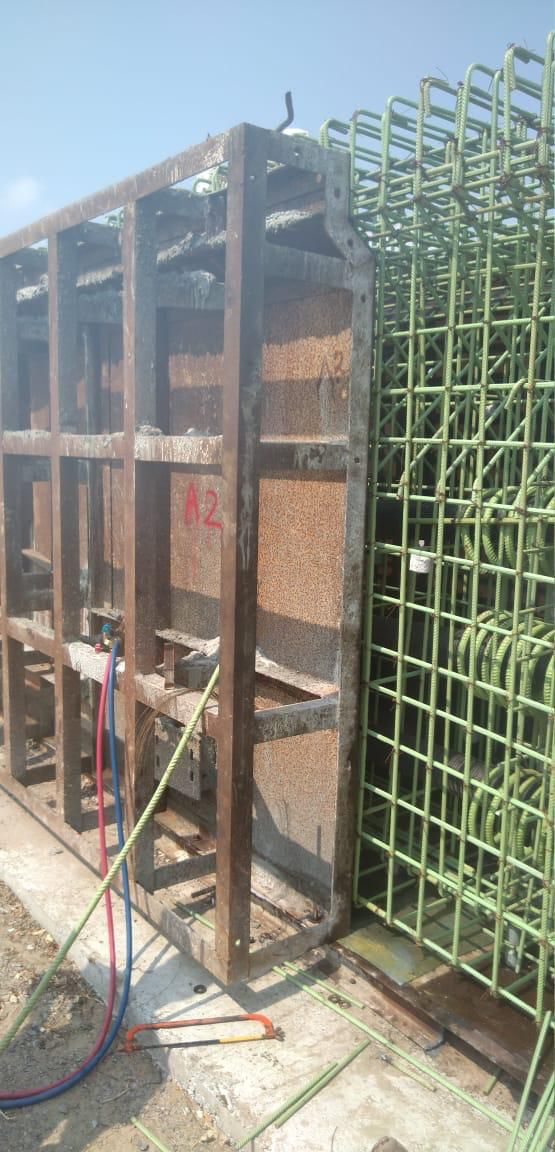

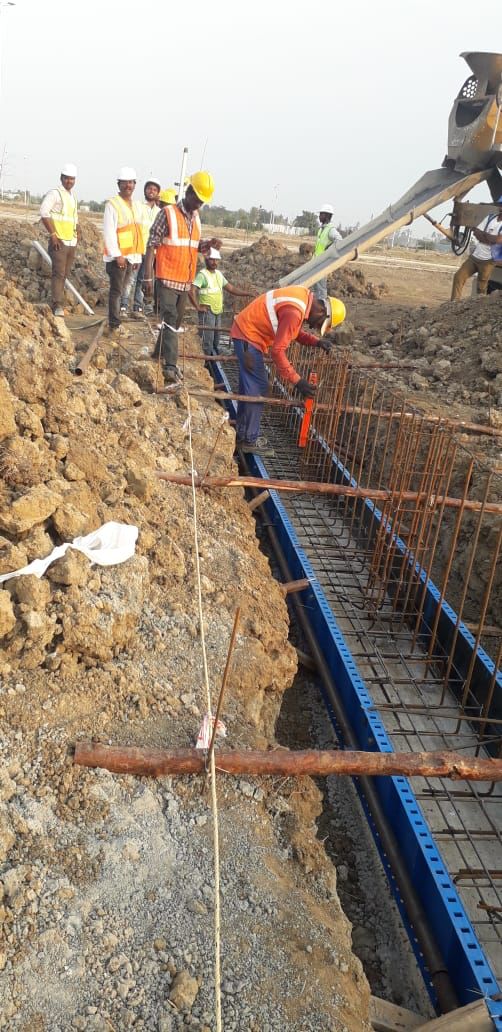

Wall form : 2.5 mm tested quality jsw HR sheet fabricated with 45*45*5 MS angle with one coat of blur primer

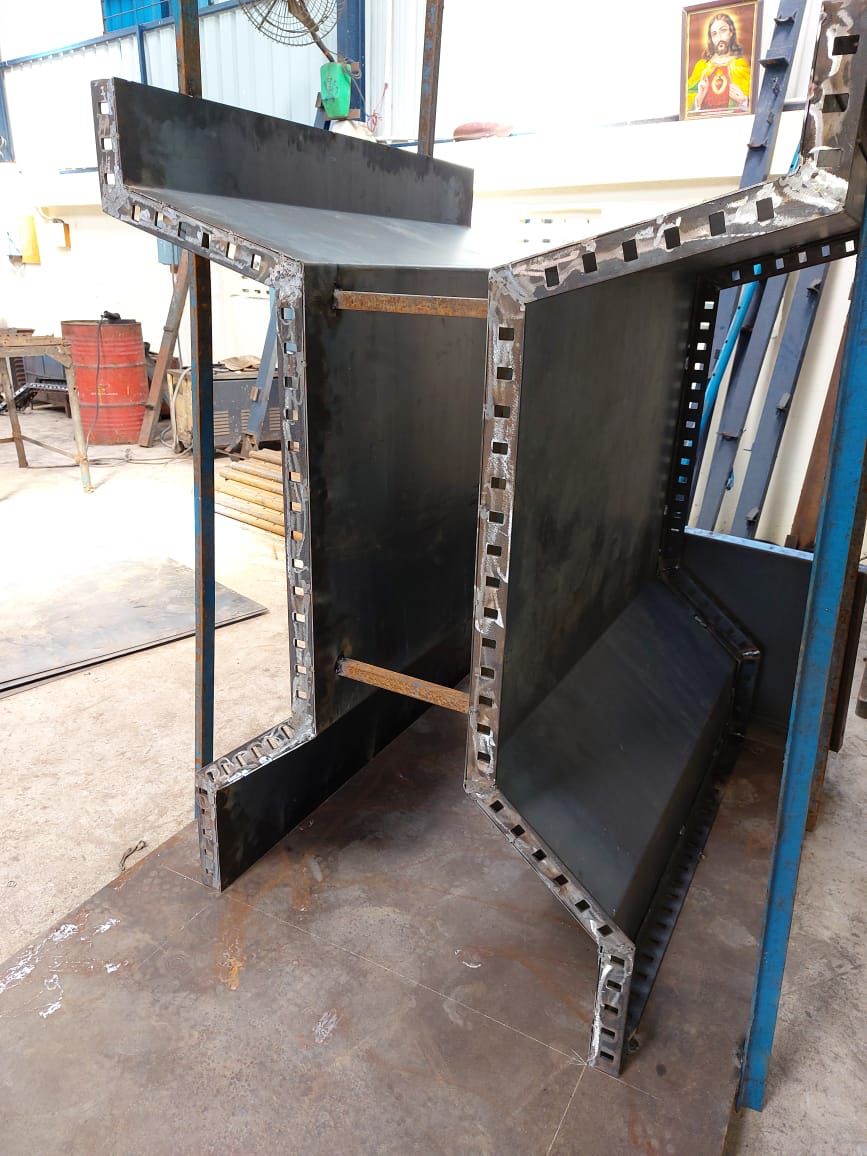

As per customer requirement
